| Image | Model Code | Power | Overall Dimension (mm) | Cutout Dimension (mm) | Standard Light Source |
Color Temperature | Beam Angle | Description | Inner Ring Color |
|---|---|---|---|---|---|---|---|---|---|
|
CS-Q9336-05B | 12W | 148*45*55 | 138*37 | Bridgelux | 2700K / 3000K 3500K / 4000K |
24° / 36° | Fixed Head Lens | Gun Black |
 |

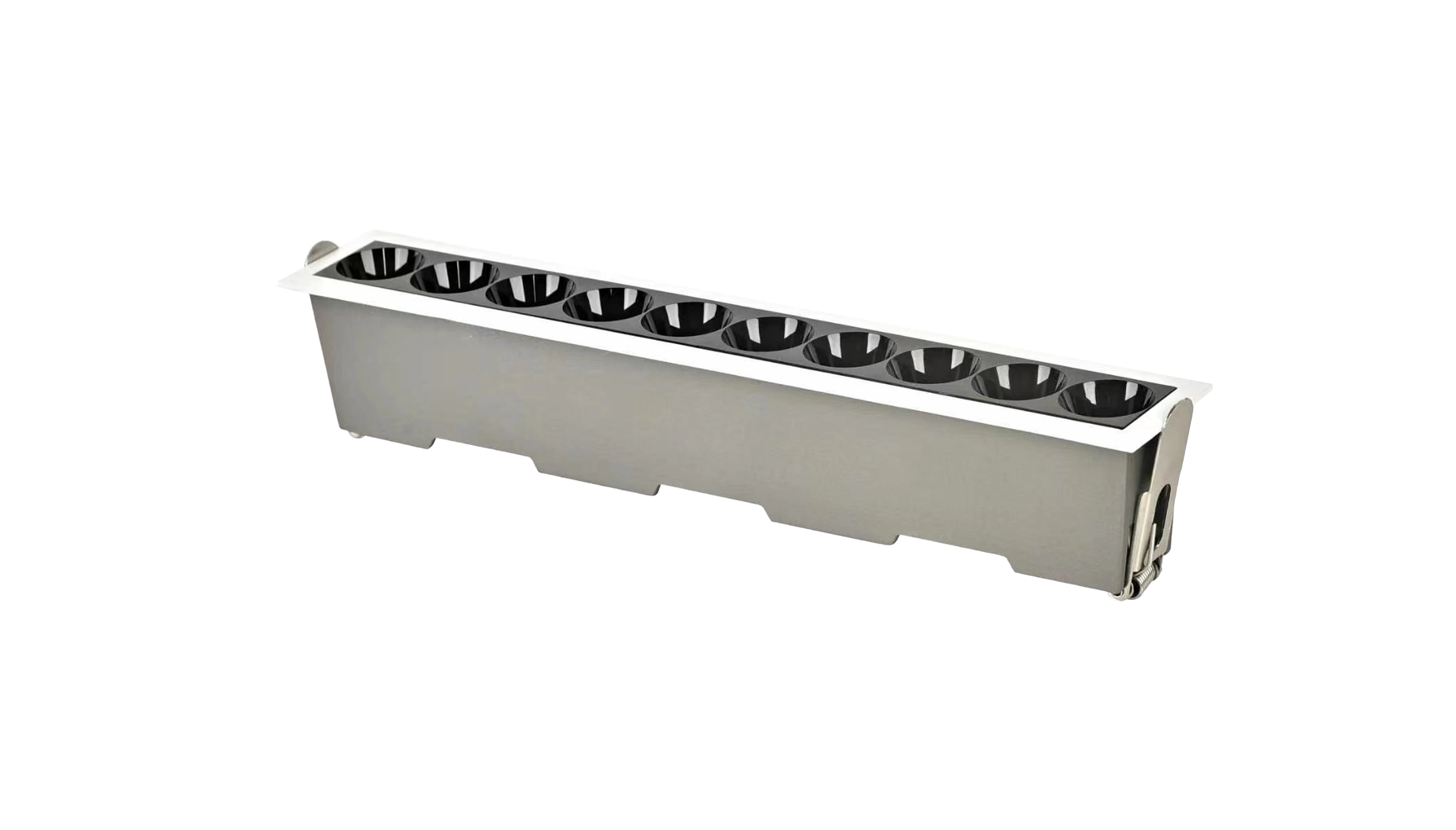

CS-Q9346-10B | 20W | 282*45*55 | 272*37 | |||||
 |

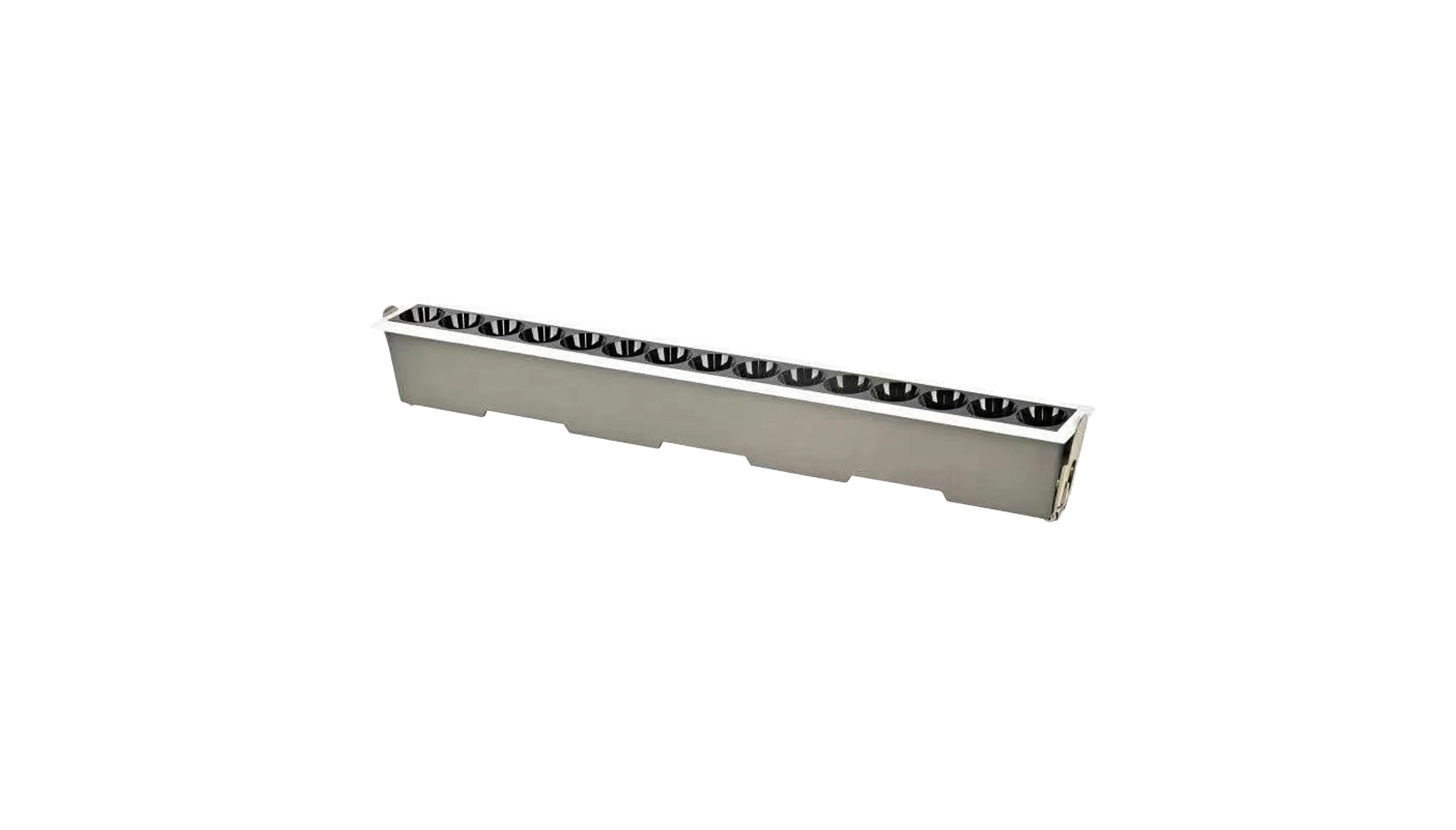

CS-Q9356-15B | 30W | 412*45*55 | 403*37 | |||||
 |

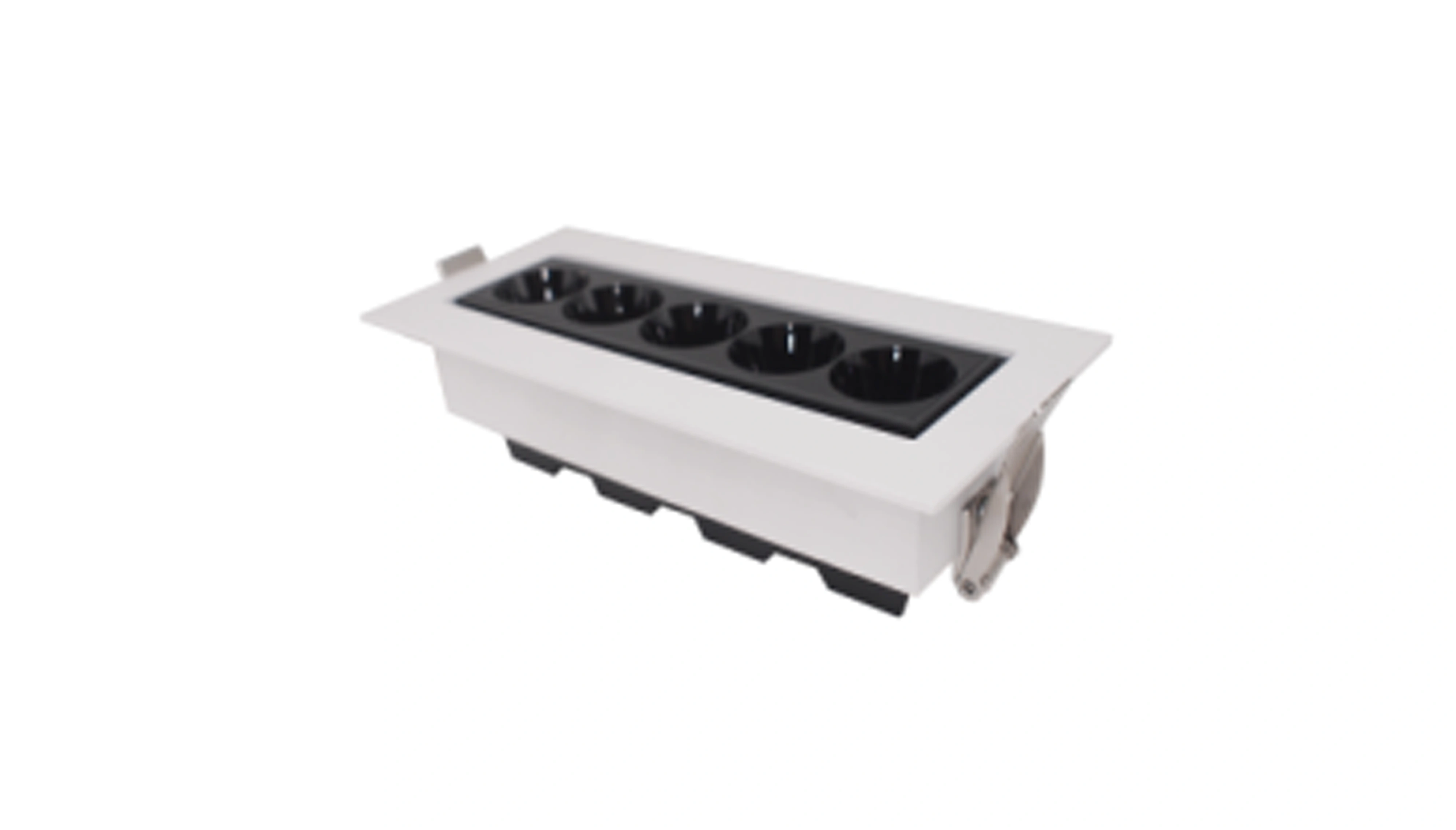

CS-Q9376-05B | 12W | 158*59*50 | 152*55 | Bridgelux | 2700K / 3000K 3500K / 4000K |
24° / 36° | Adjustable Head Lens | Gun Black |
 |

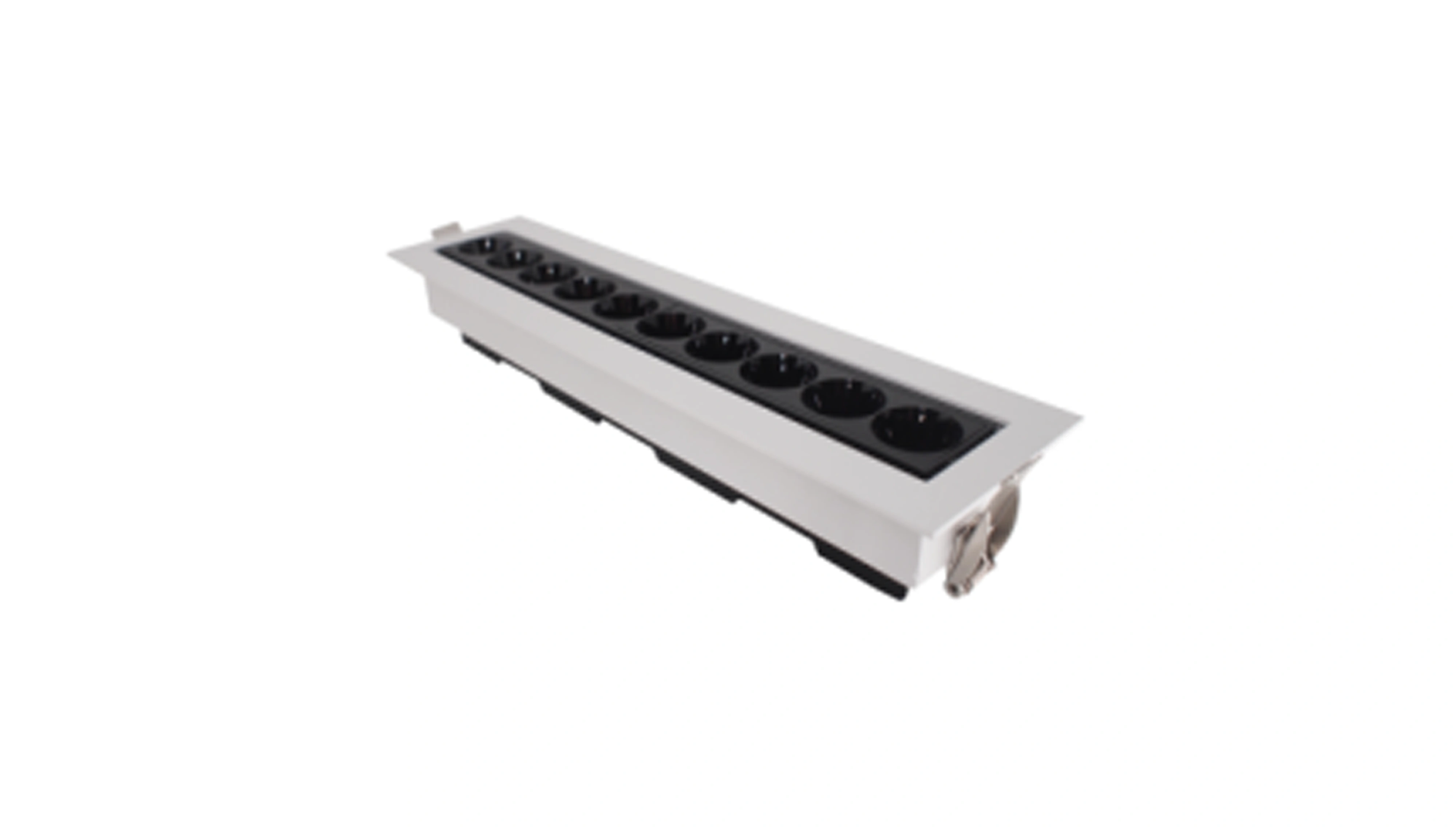

CS-Q9386-10B | 20W | 291*59*50 | 285*55 | |||||
 |

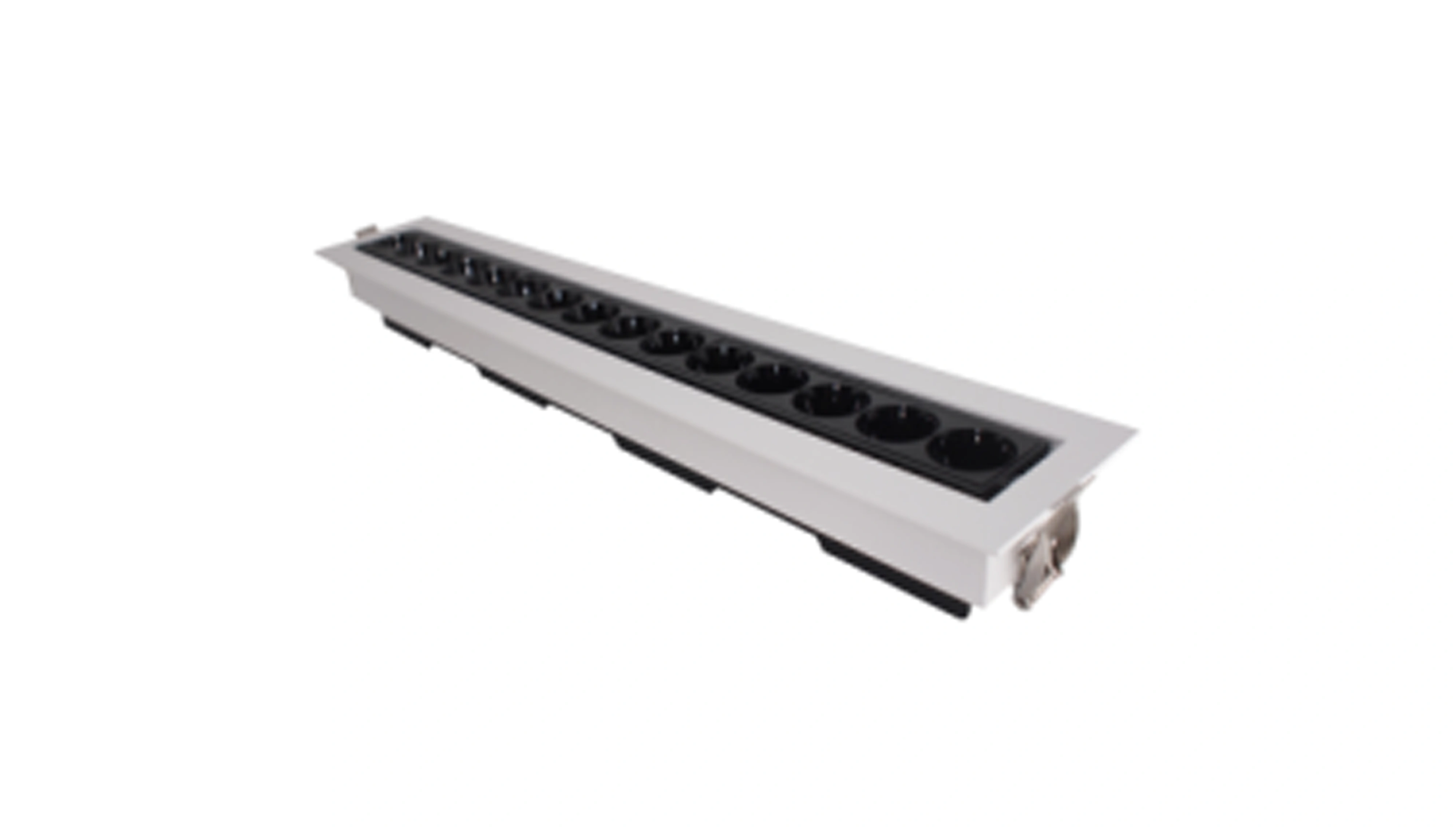

CS-Q9396-15B | 30W | 425*59*50 | 420*55 |
