| Image | Model Code | Power | Overall Dimension (mm) | Cutout Dimension (mm) | Standard Light Source |
Color Temperature | Beam Angle | Description | Inner Ring Color |
|---|---|---|---|---|---|---|---|---|---|
 |

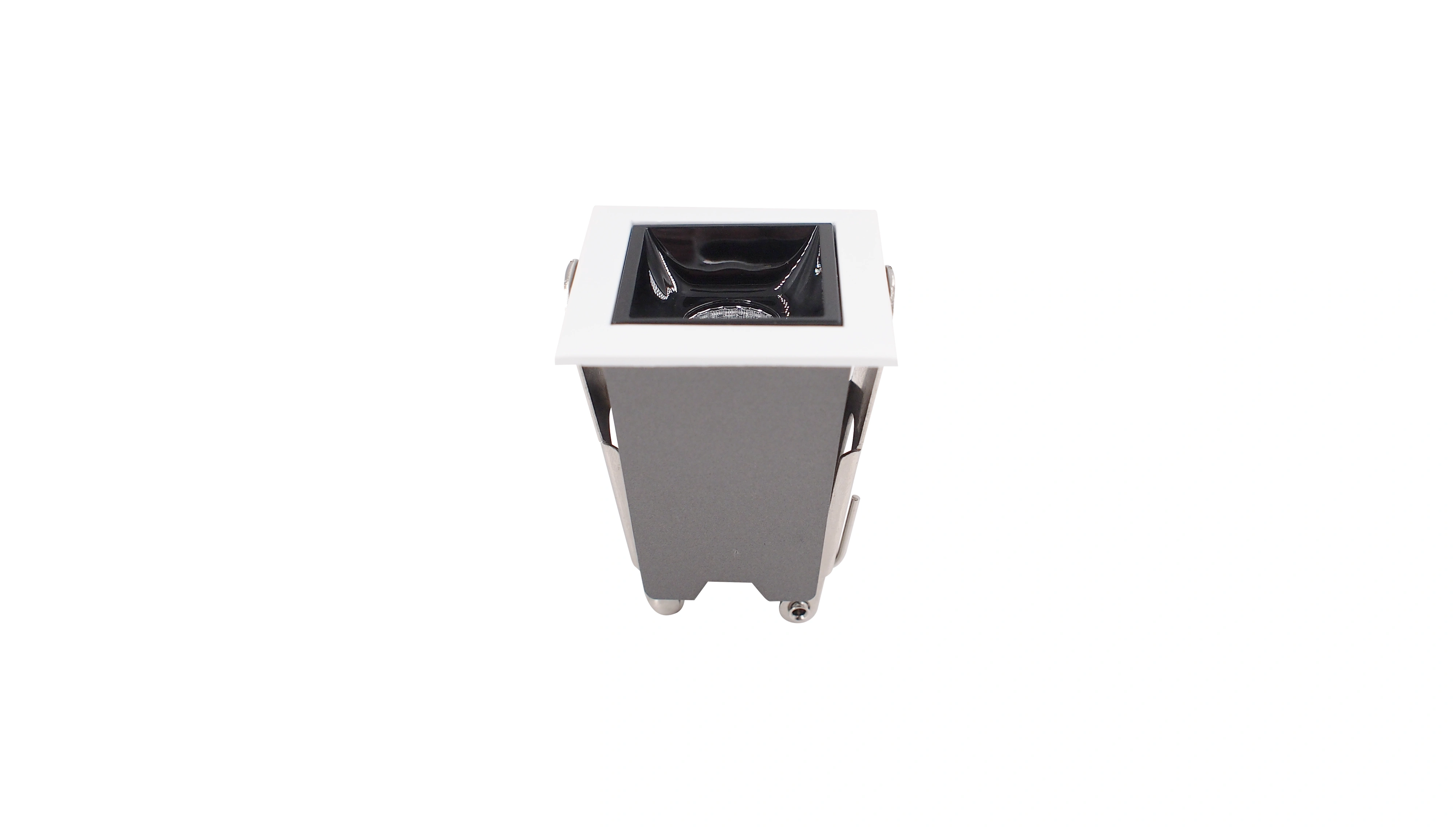

CS-Q9316-01 | 3W | 45*45*54 | 37*37 | Bridgelux | 2700K / 3000K 3500K / 4000K |
15° / 30° / 45° | Fixed Head Reflector Cup |
Gun Black |
 |

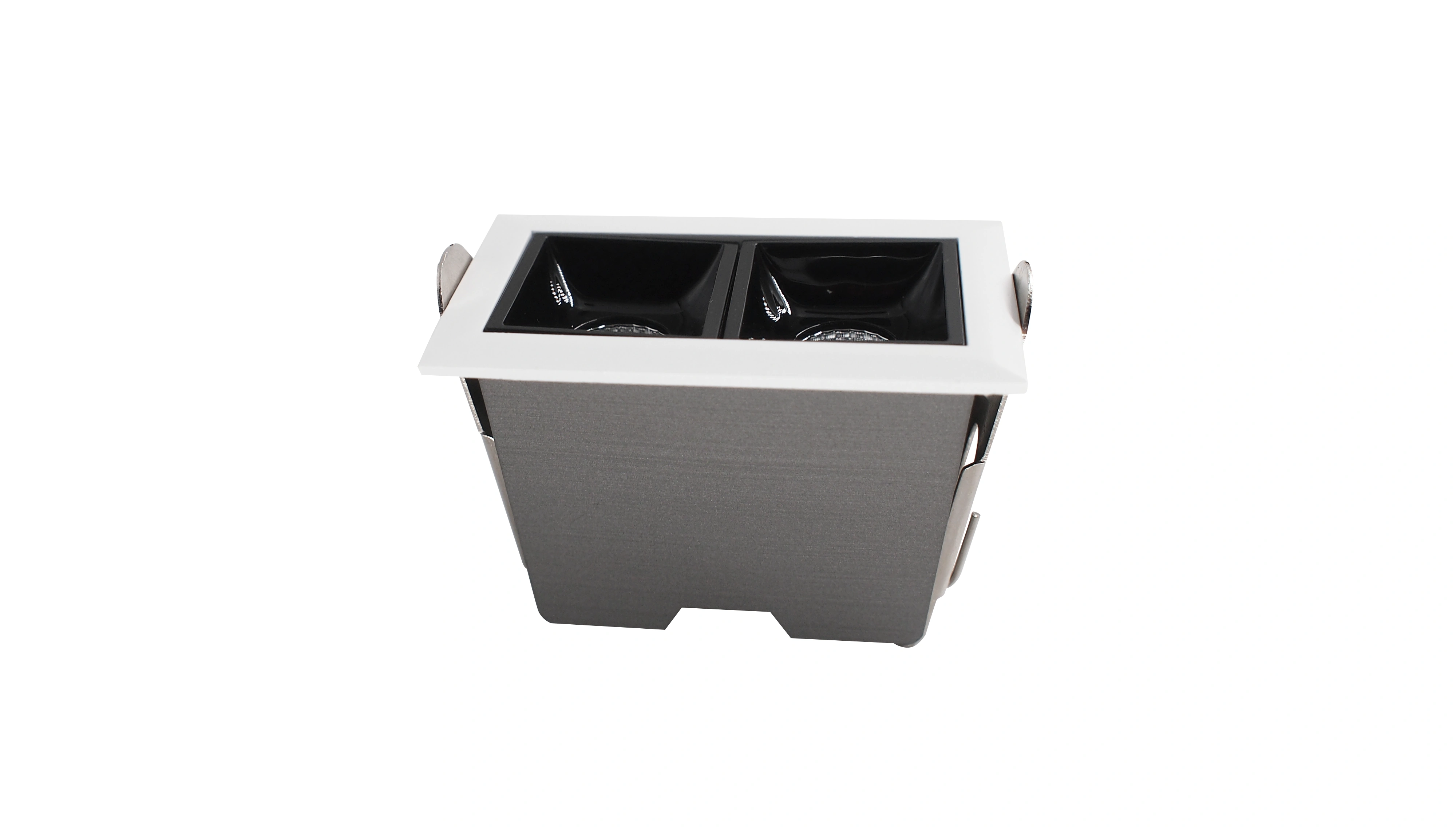

CS-Q9326-02 | 5W | 75*45*54 | 66*37 | |||||
 |

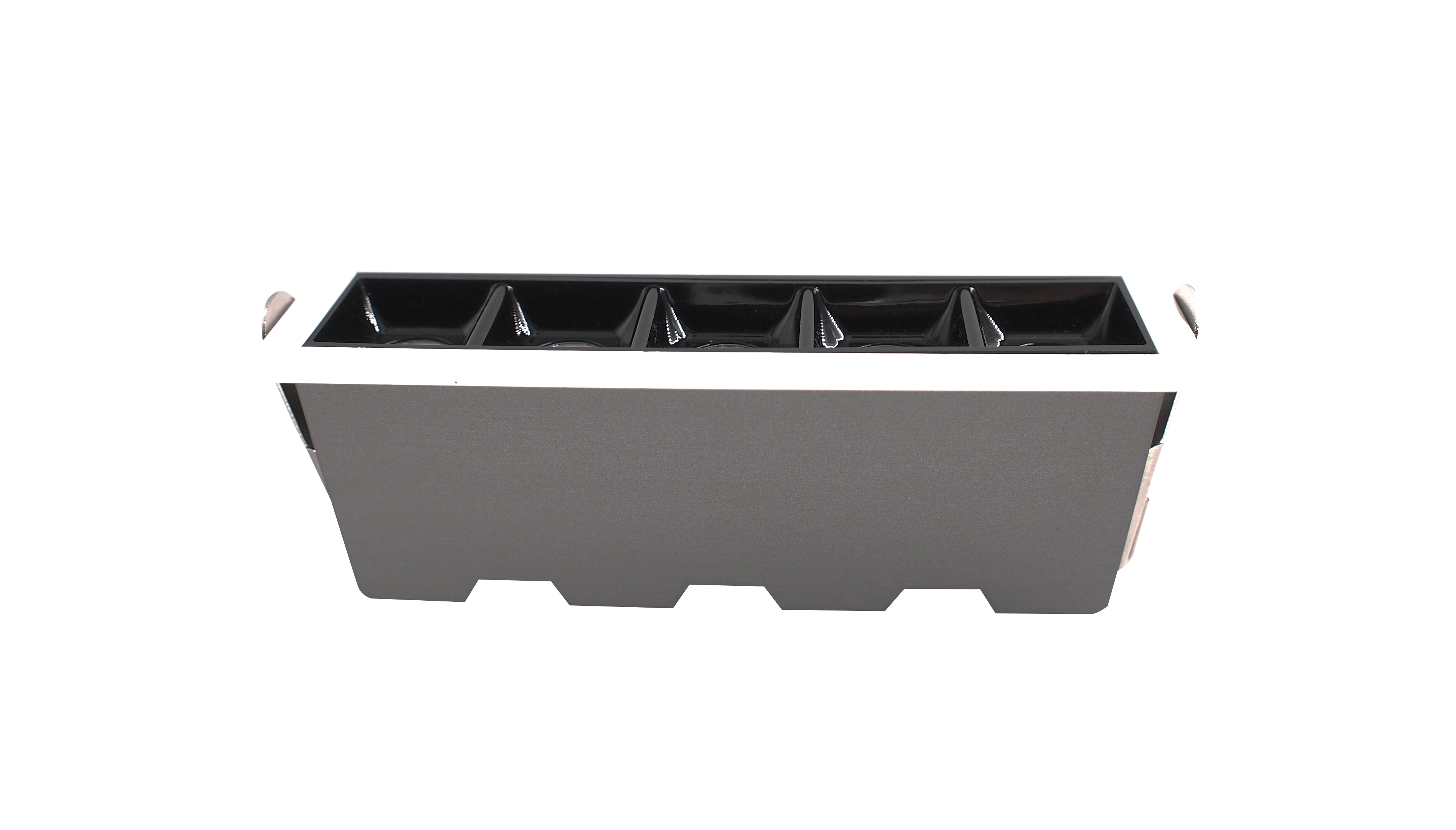

CS-Q9336-05 | 12W | 148*45*55 | 138*37 | |||||
|
CS-Q9346-10 | 20W | 282*45*55 | 272*37 | |||||
 |

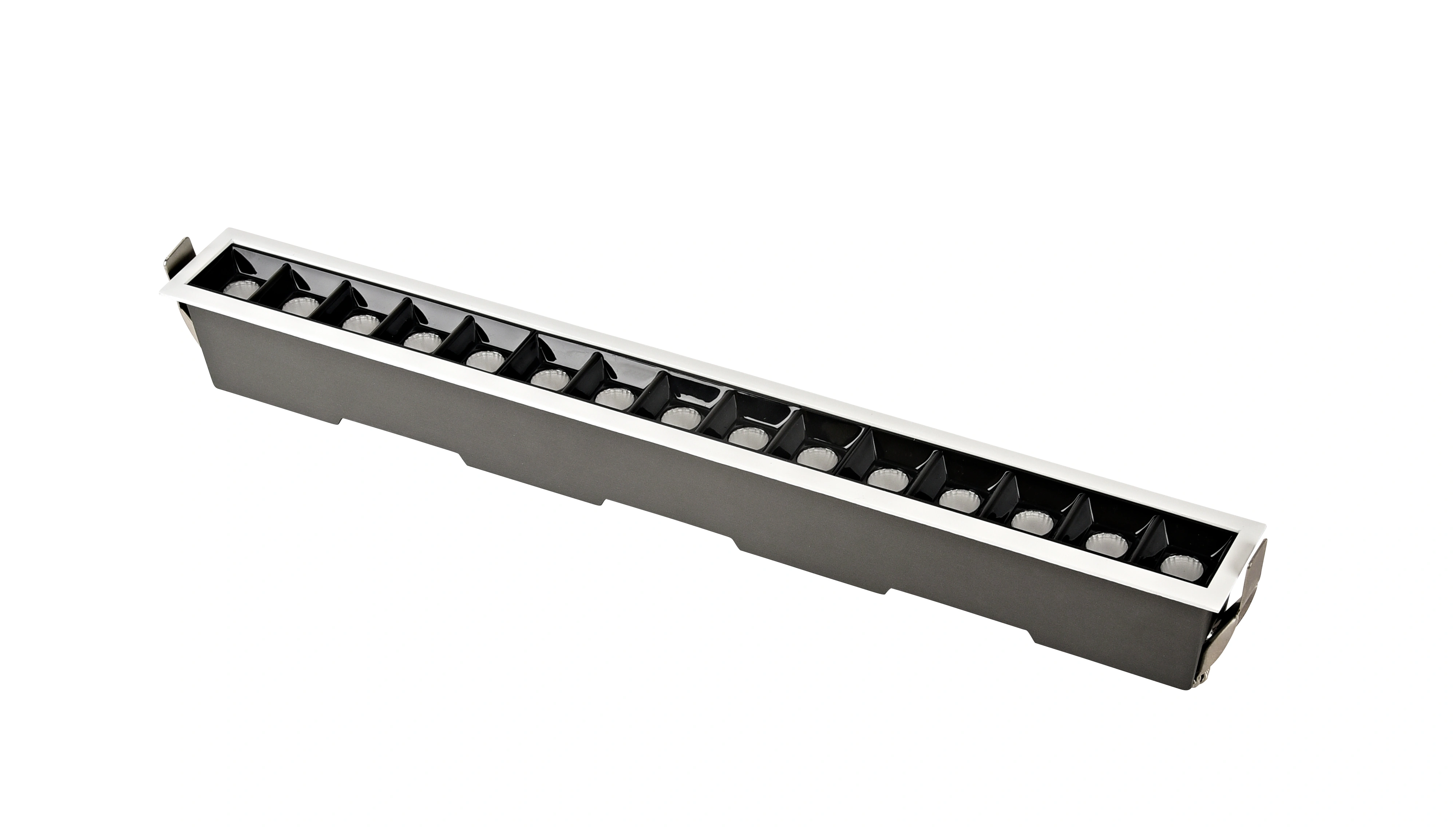

CS-Q9356-15 | 30W | 412*45*55 | 403*37 | |||||
 |

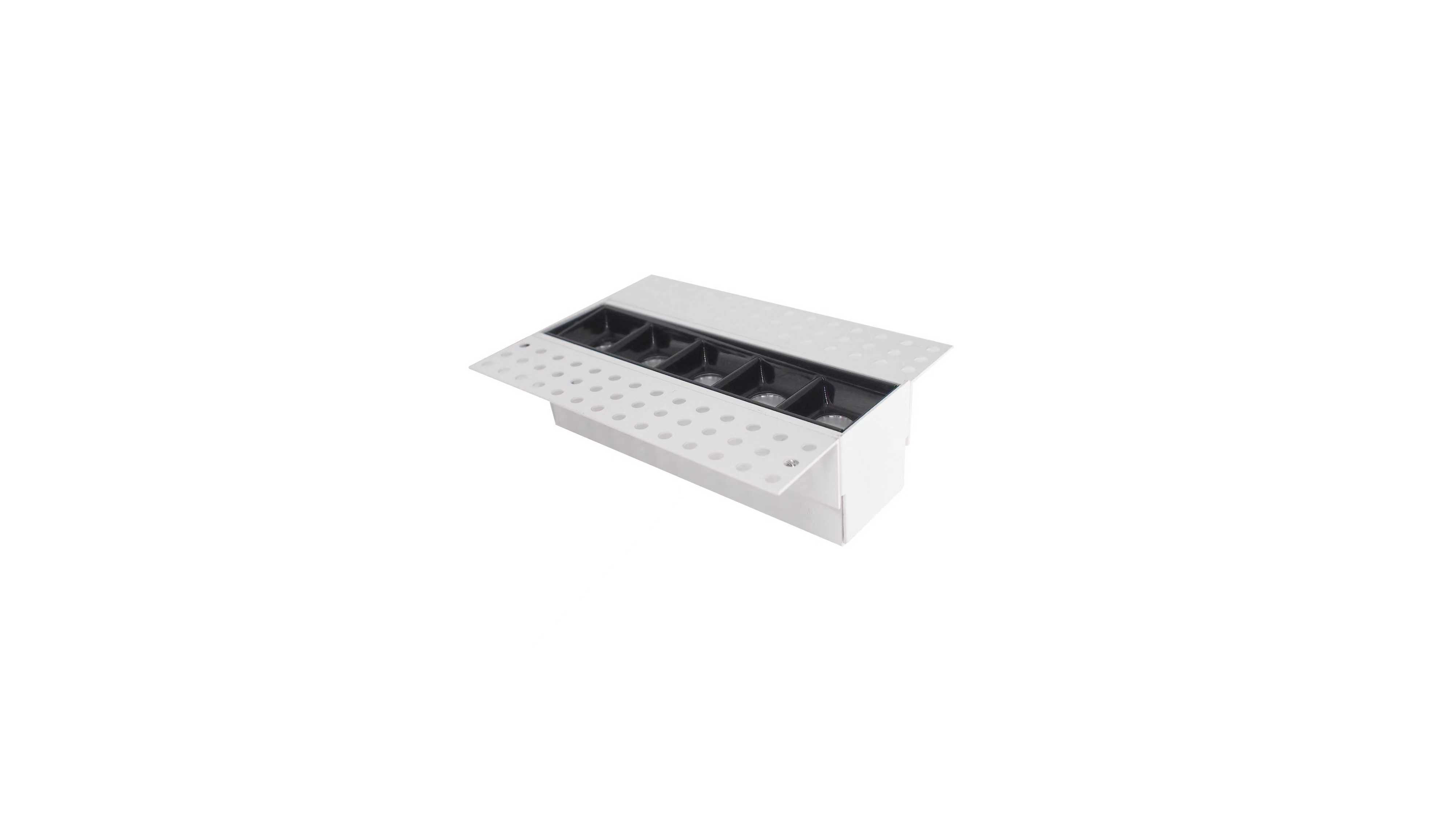

CS-GD619-5 | 5W | 141*101*42 | 141*50 | Bridgelux | 2700K / 3000K 3500K / 4000K |
15° / 30° / 45° | Fixed Head Reflector Cup Trimless |
Gun Black |
 |

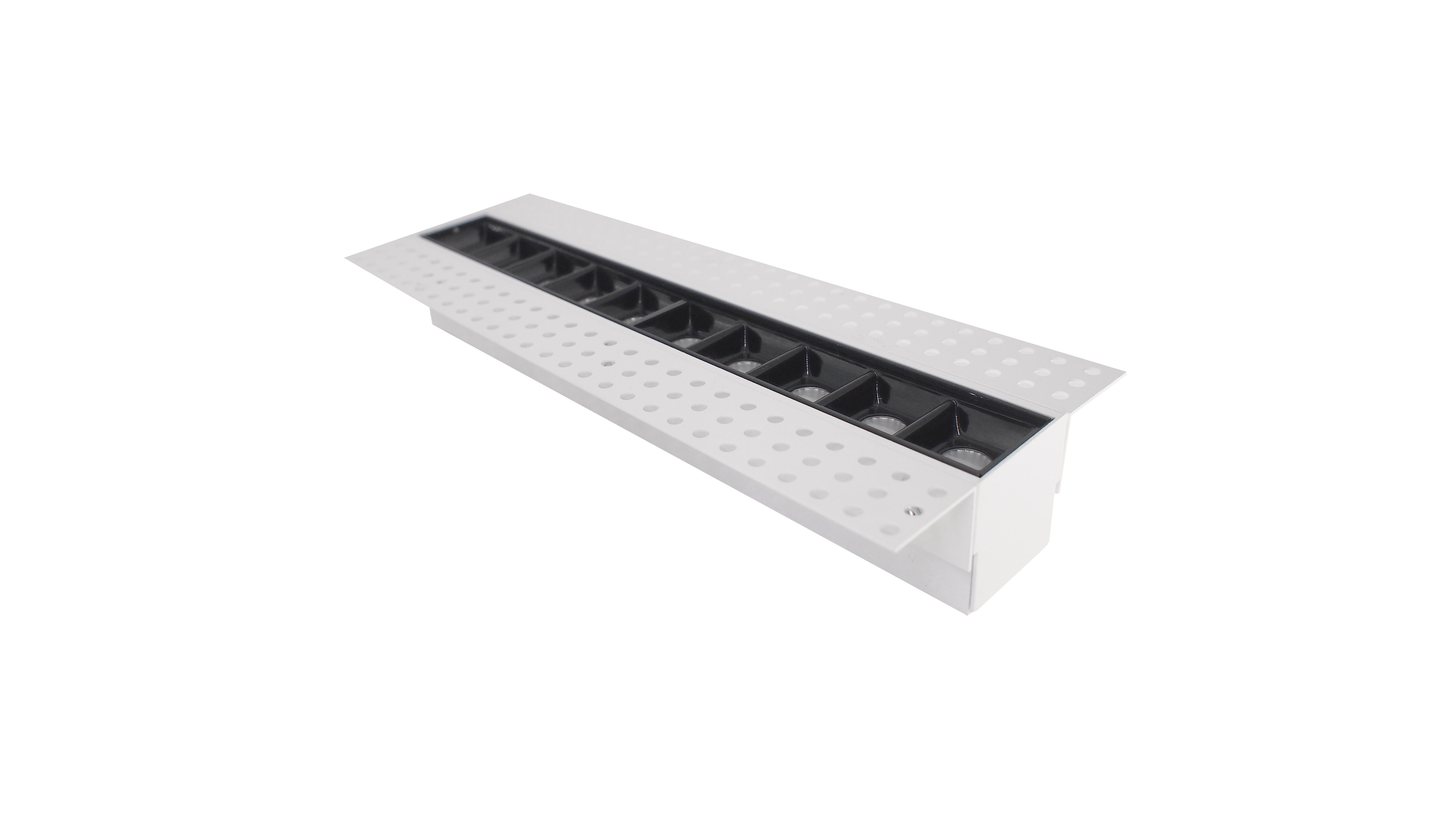

CS-GD619-10 | 10W | 274*101*42 | 274*50 | |||||
 |

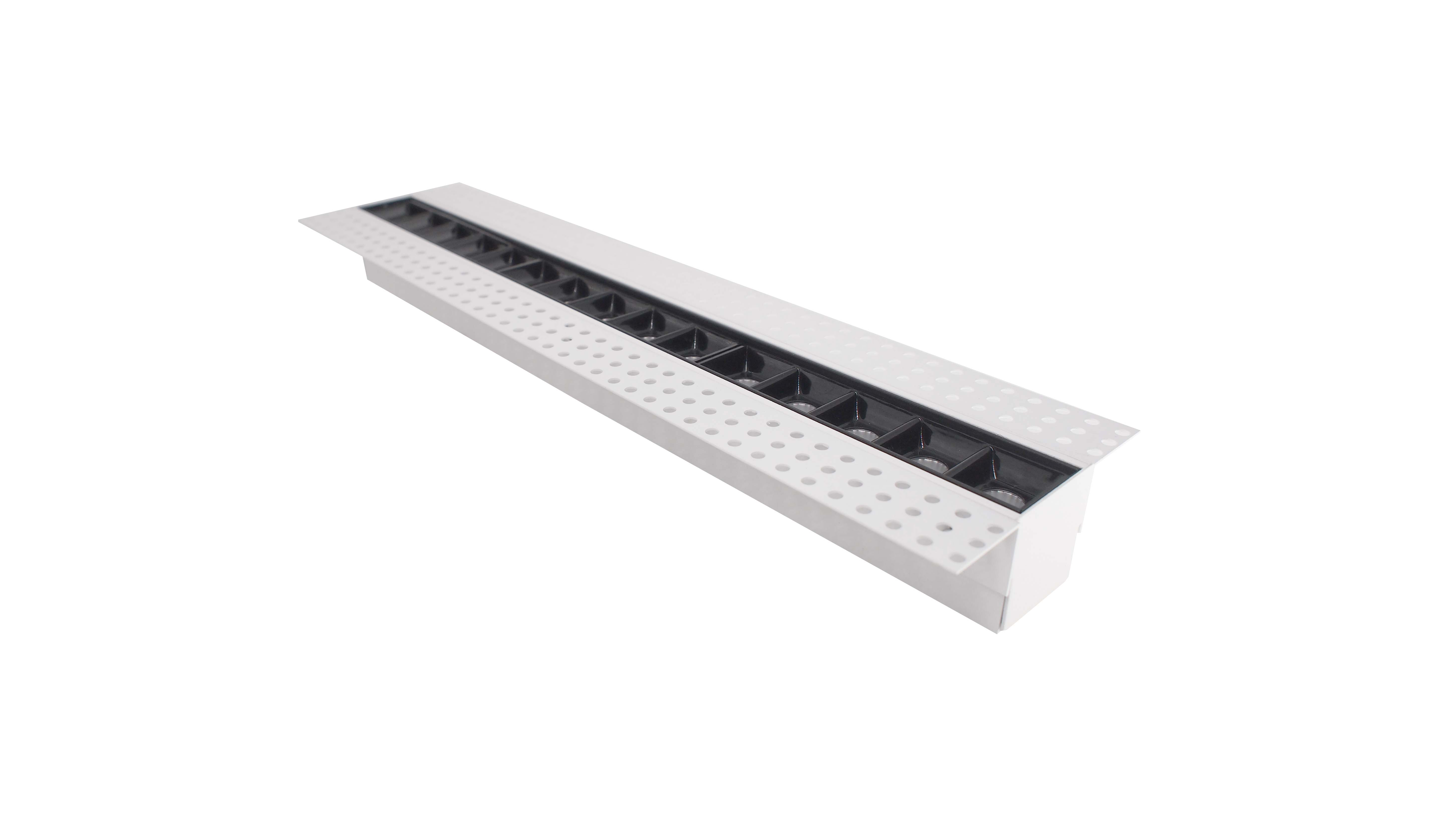

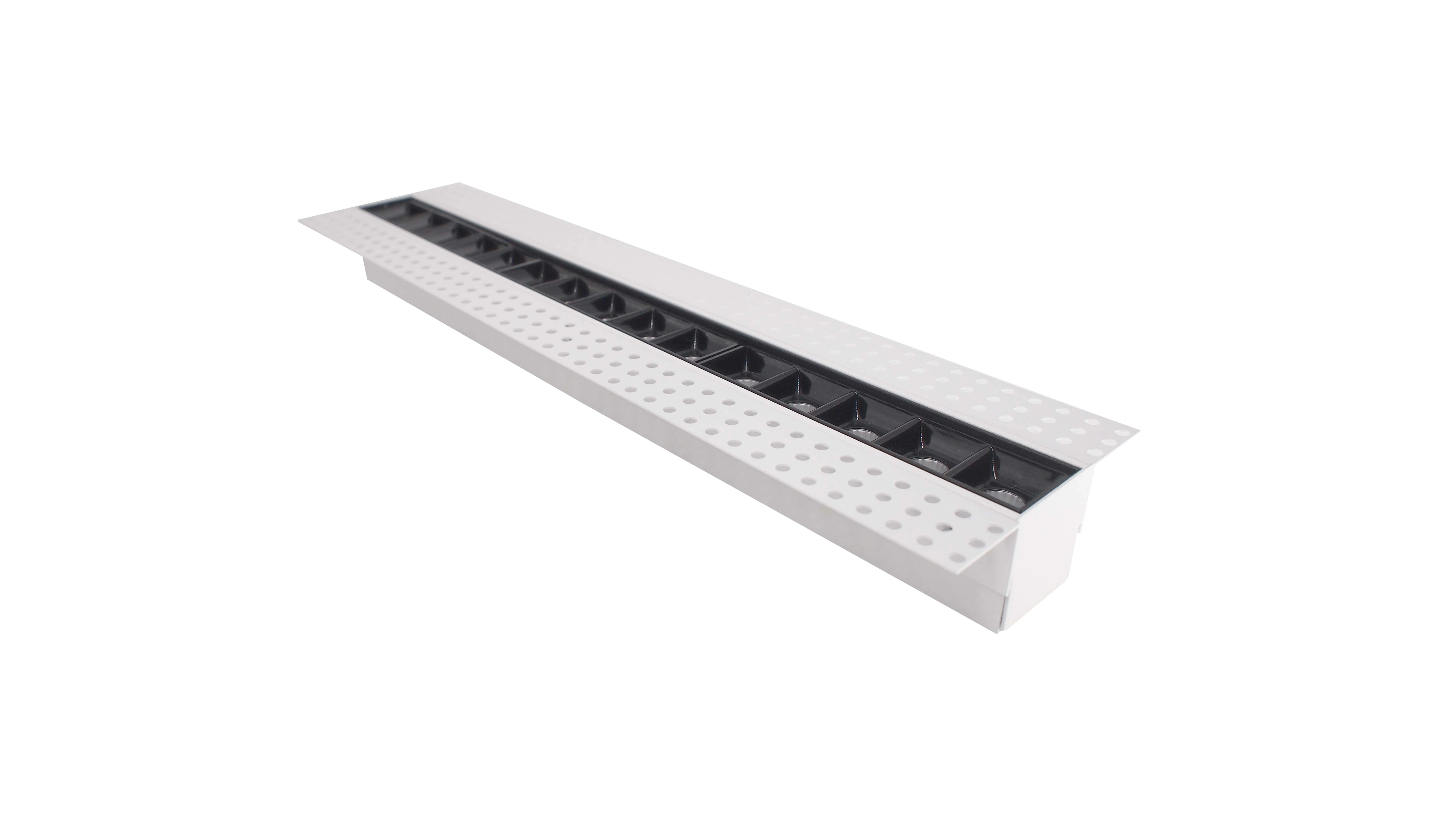

CS-GD619-15 | 15W | 406*101*42 | 406*50 | |||||
 |

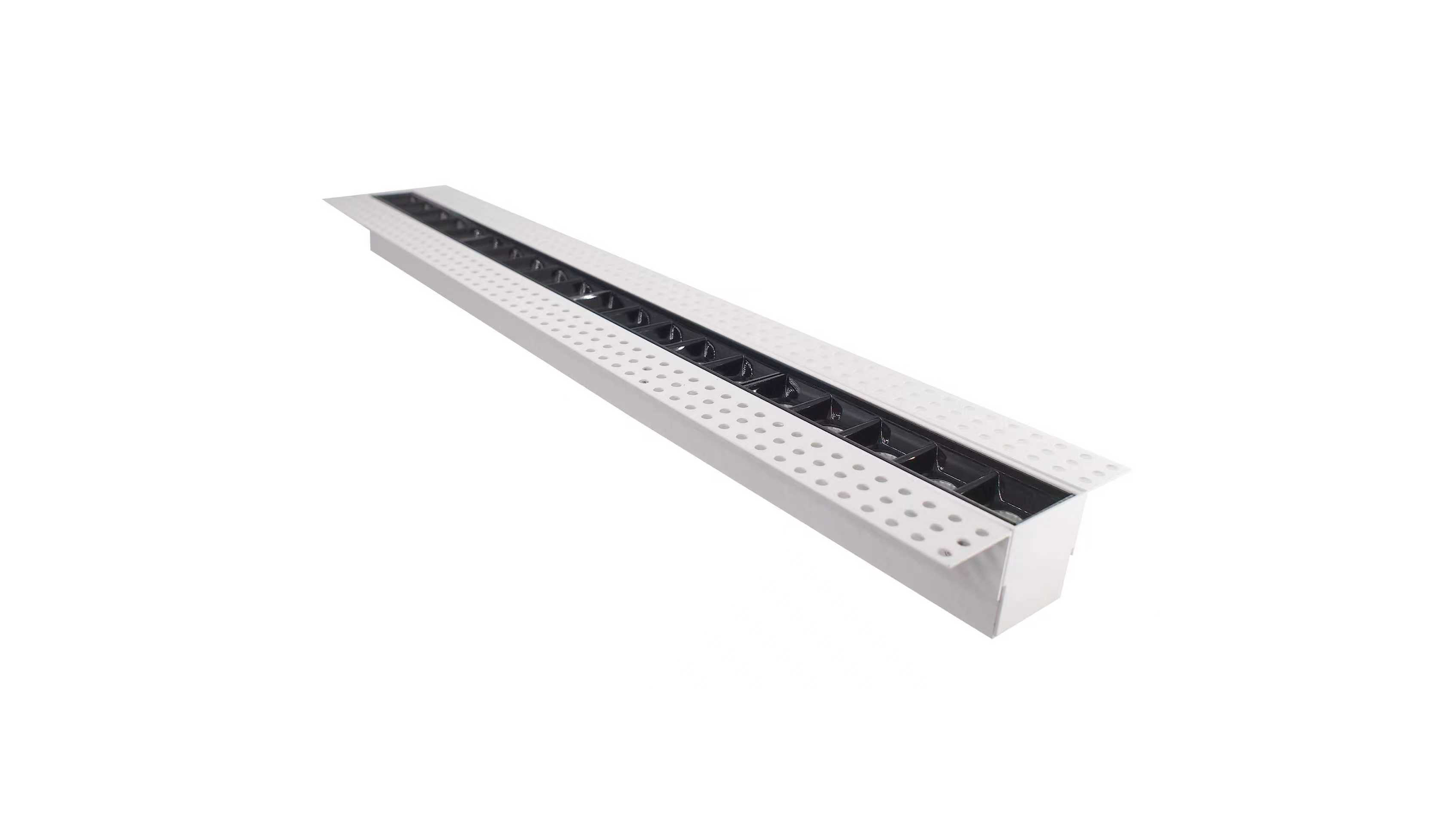

CS-GD619-20 | 20W | 541*101*42 | 541*50 |
