| Image | Model Code | Power | Overall Dimension (mm) | Cutout Dimension (mm) | Standard Light Source |
Color Temperature | Beam Angle | Description | Inner Ring Color |
|---|---|---|---|---|---|---|---|---|---|
 |

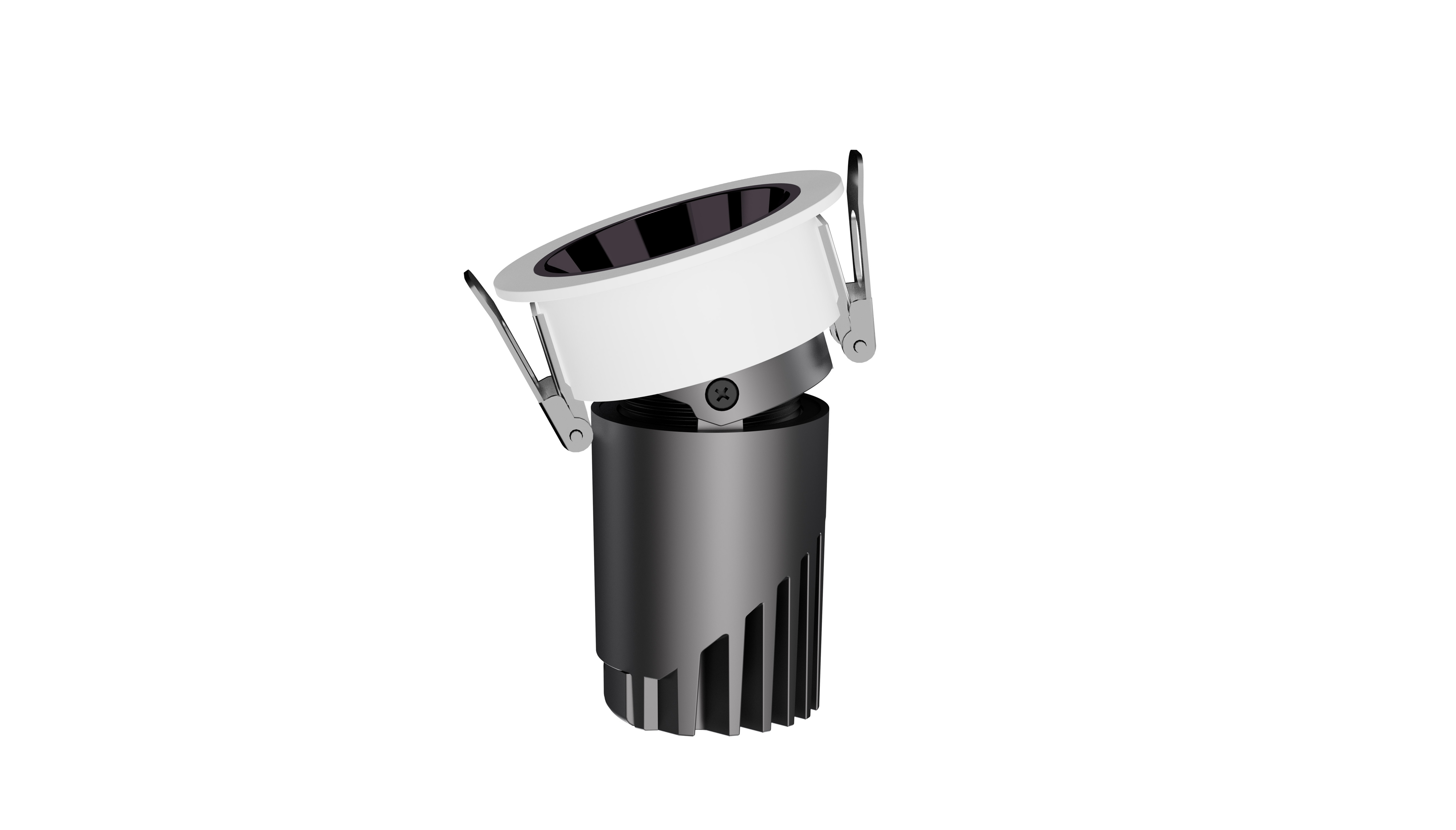

CS-Q0715-05S | 5W | Φ65*90 | Φ55 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
Gun Black Matte Black Matte White |
|
CS-Q0715-07S | 7W | |||||||
|
CS-Q0725-08S | 8W | Φ83*90 | Φ75 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
Gun Black Matte Black Matte White |
|
CS-Q0725-10S | 10W | |||||||
 |

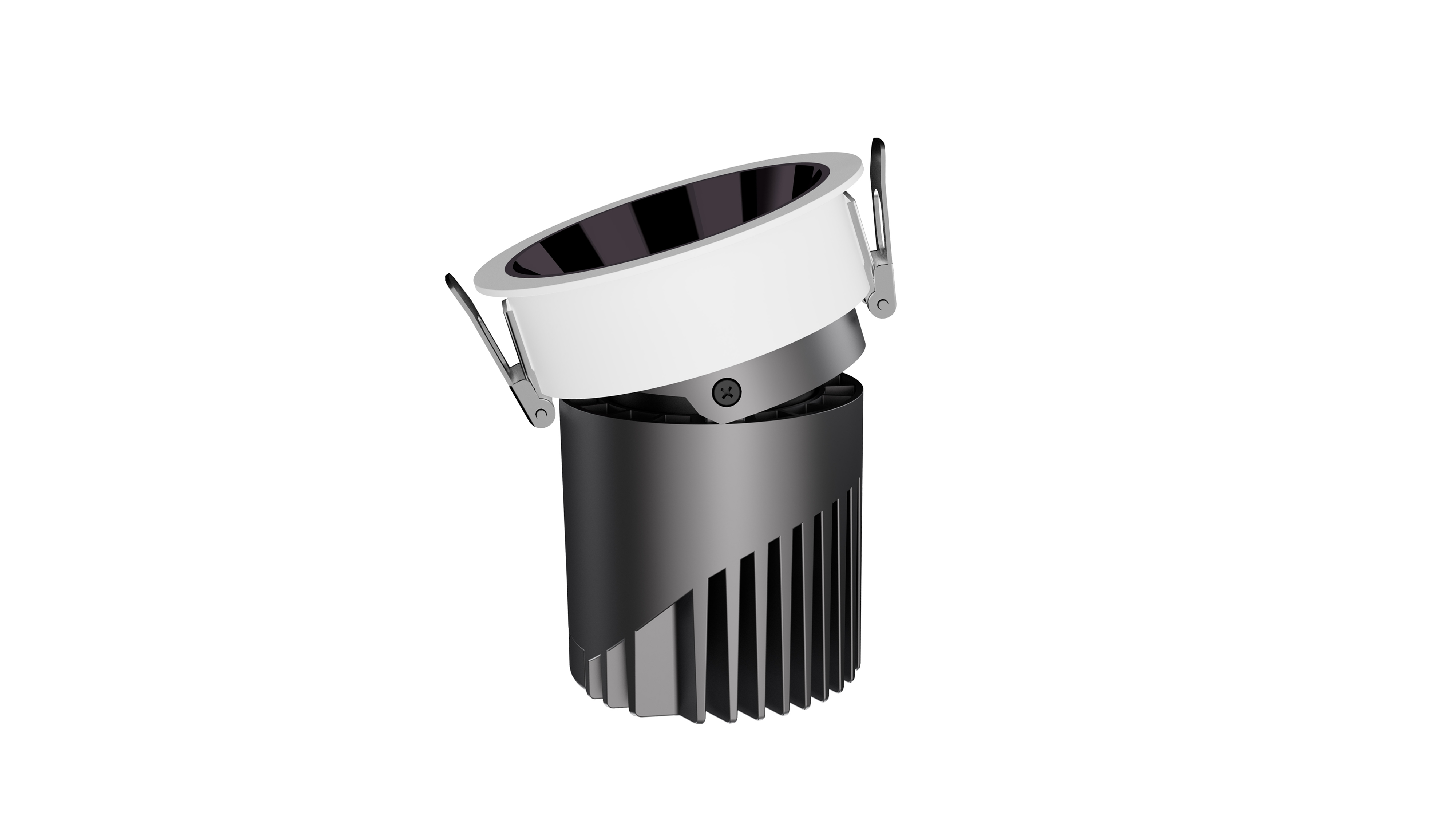

CS-Q0725-15S | 15W | Φ85*100 | ||||||
 |

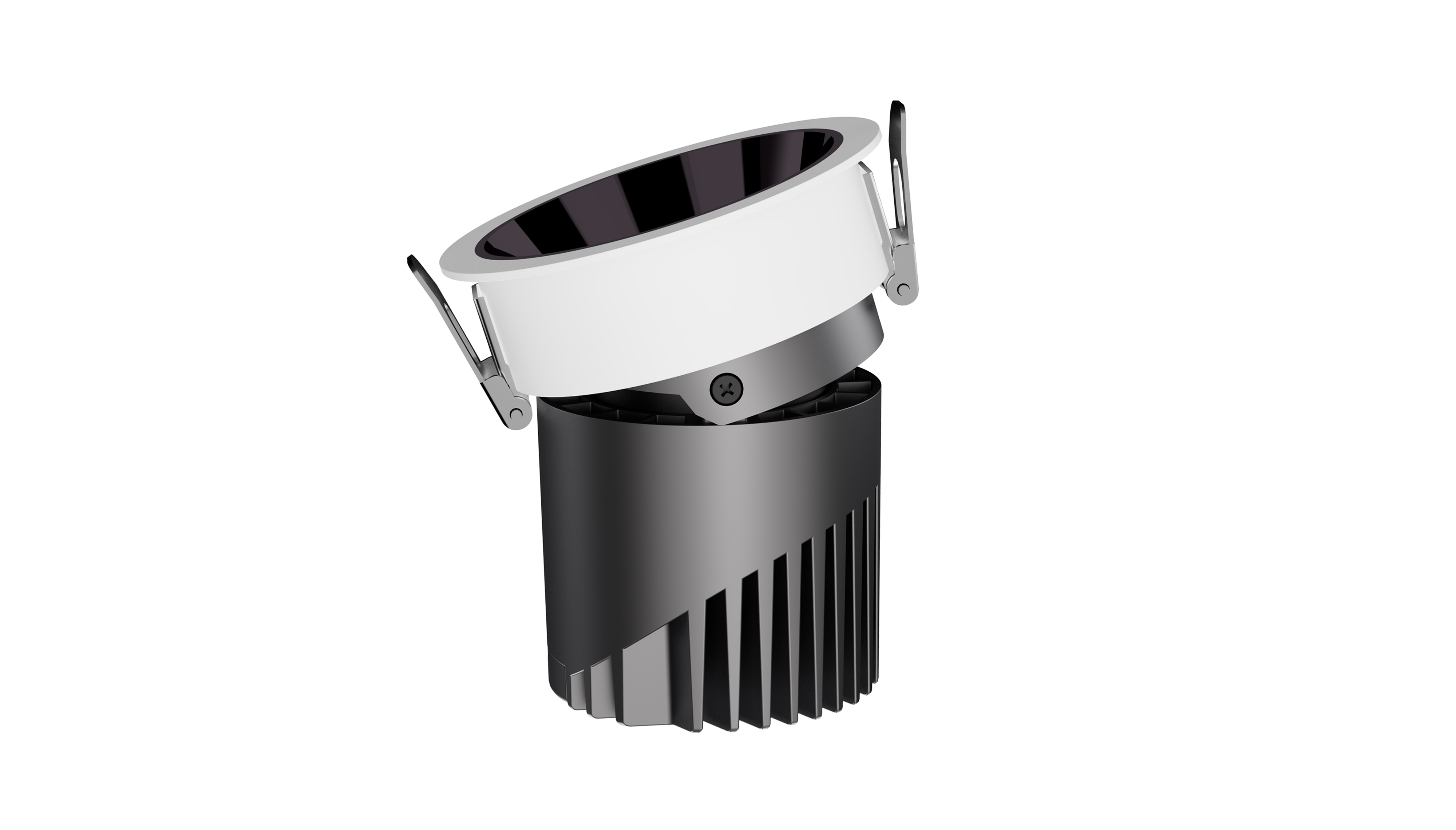

CS-Q0735-20S | 20W | Φ105*120 | Φ95 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
Gun Black Matte Black Matte White |
|
CS-Q0735-24S | 24W | |||||||
 |

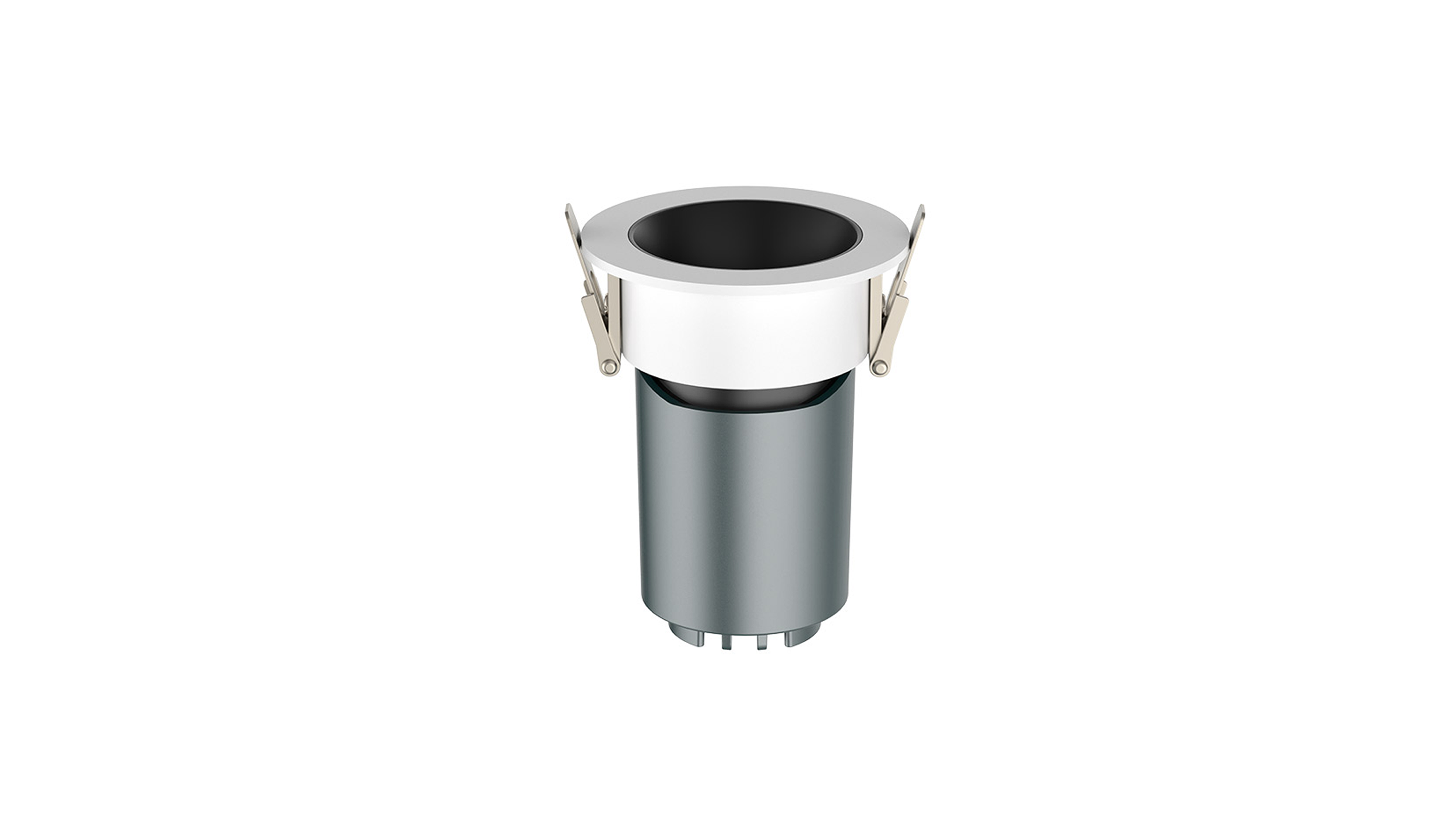

CS-Q0255-05S | 5W | Φ65*70 | Φ55 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
Gun Black Matte Black Matte White |
 |

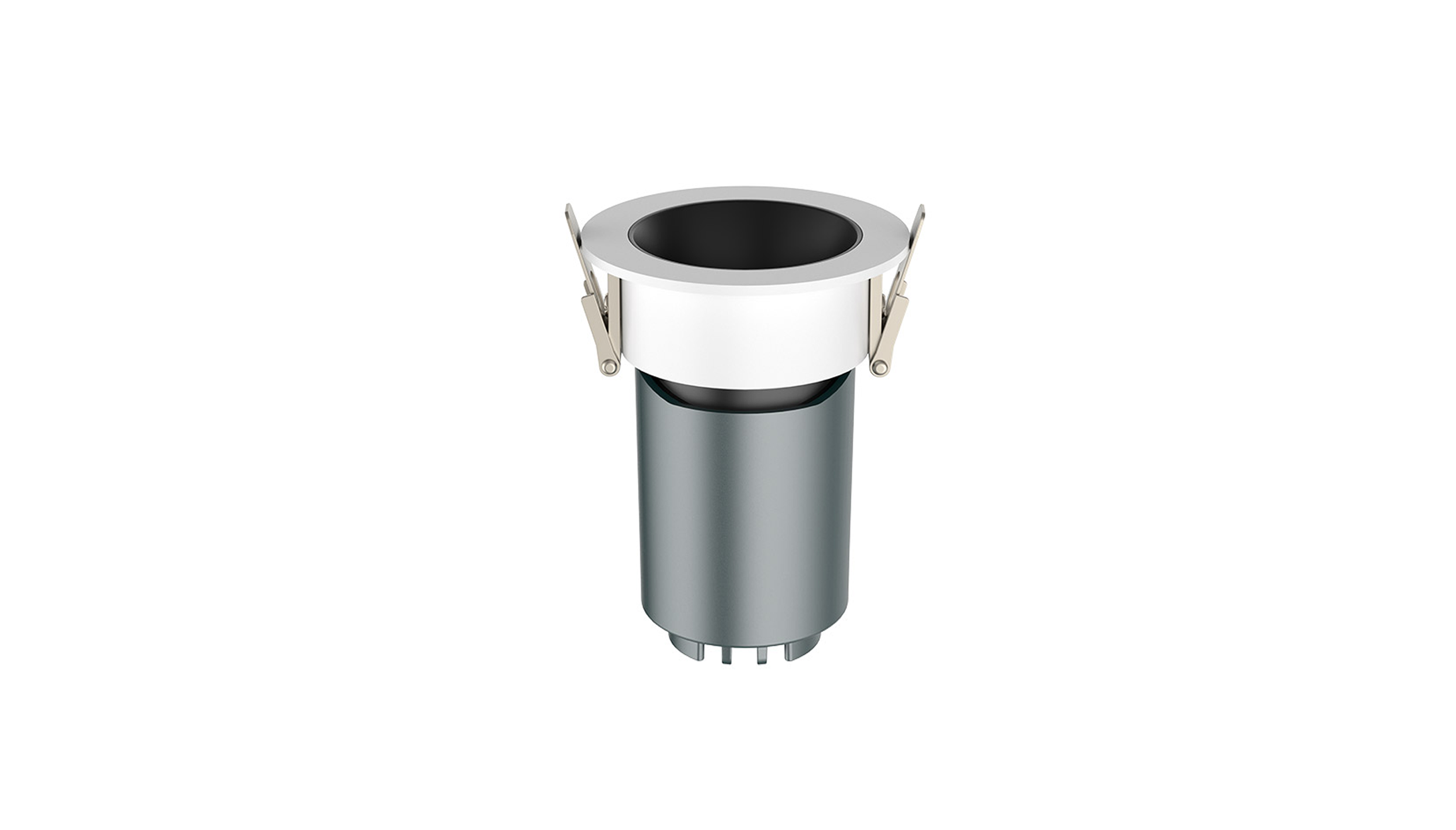

CS-Q0255-07S | 7W | Φ65*80 | ||||||
 |

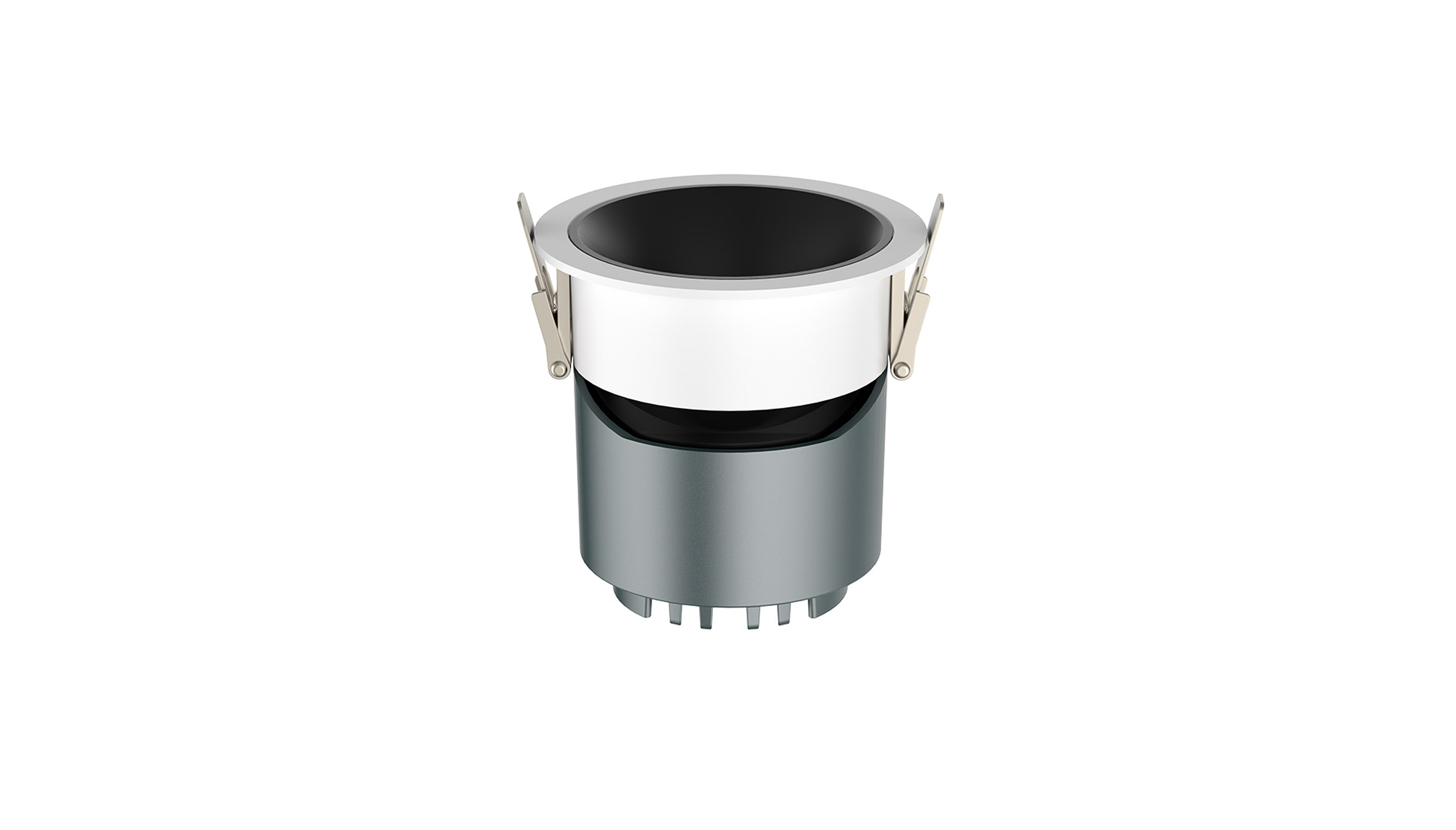

CS-Q0265-08S | 8W | Φ85*80 | Φ75 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
Gun Black Matte Black Matte White |
|
CS-Q0265-11S | 11W | |||||||
 |

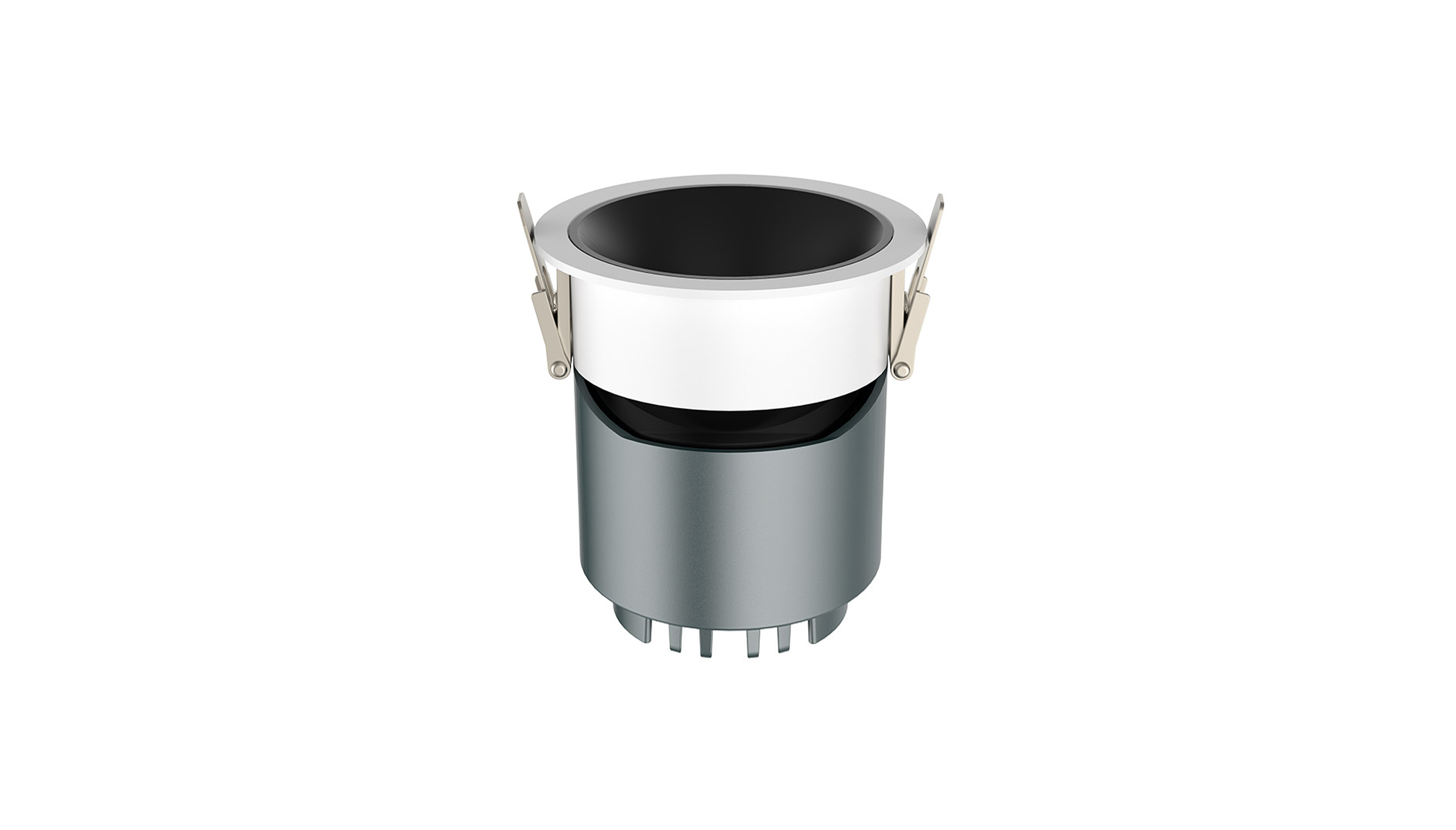

CS-Q0265-15S | 15W | Φ85*95 | ||||||
 |

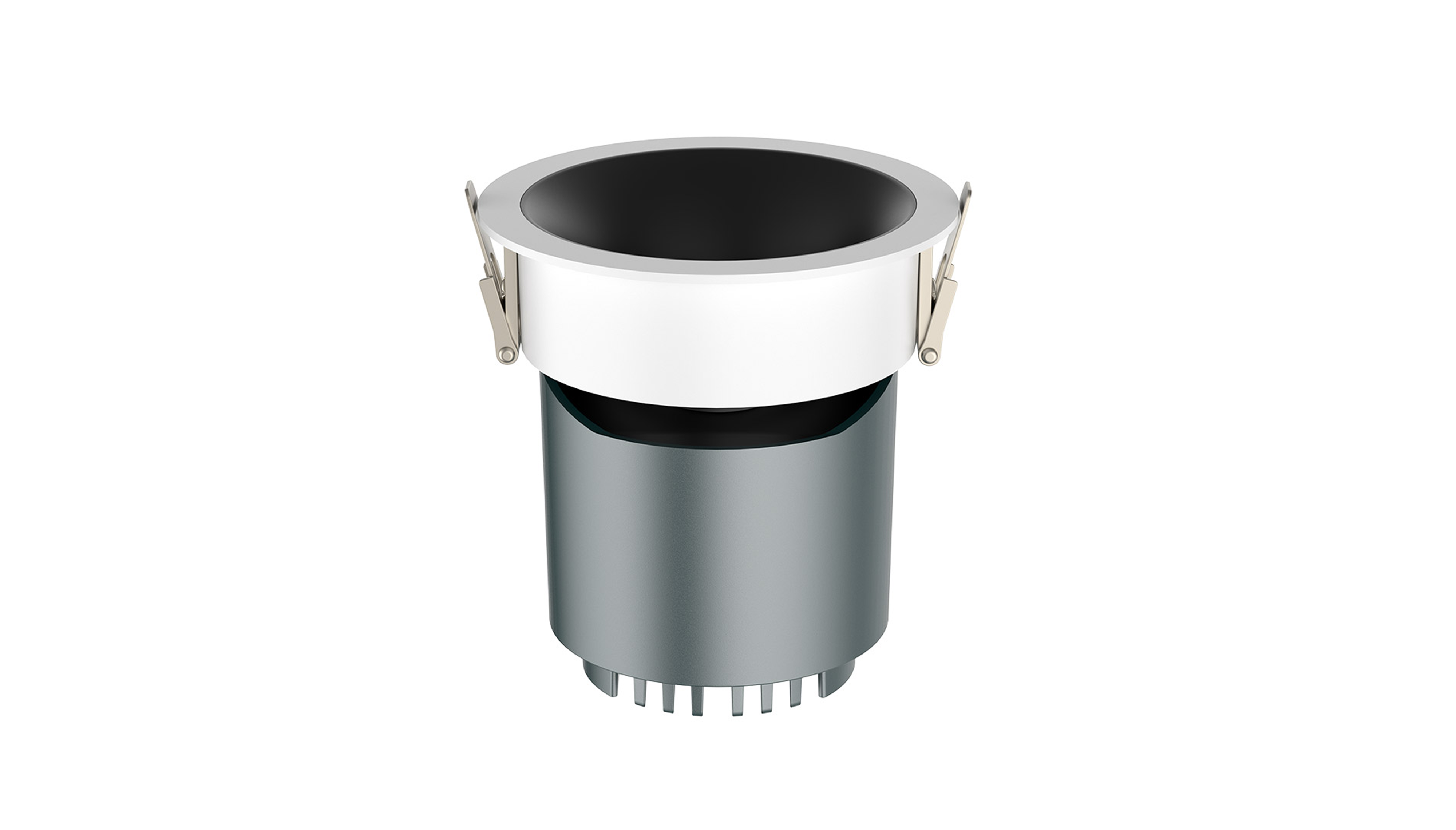

CS-Q0275-15S | 15W | Φ105*100 | Φ95 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
Gun Black Matte Black Matte White |
 |

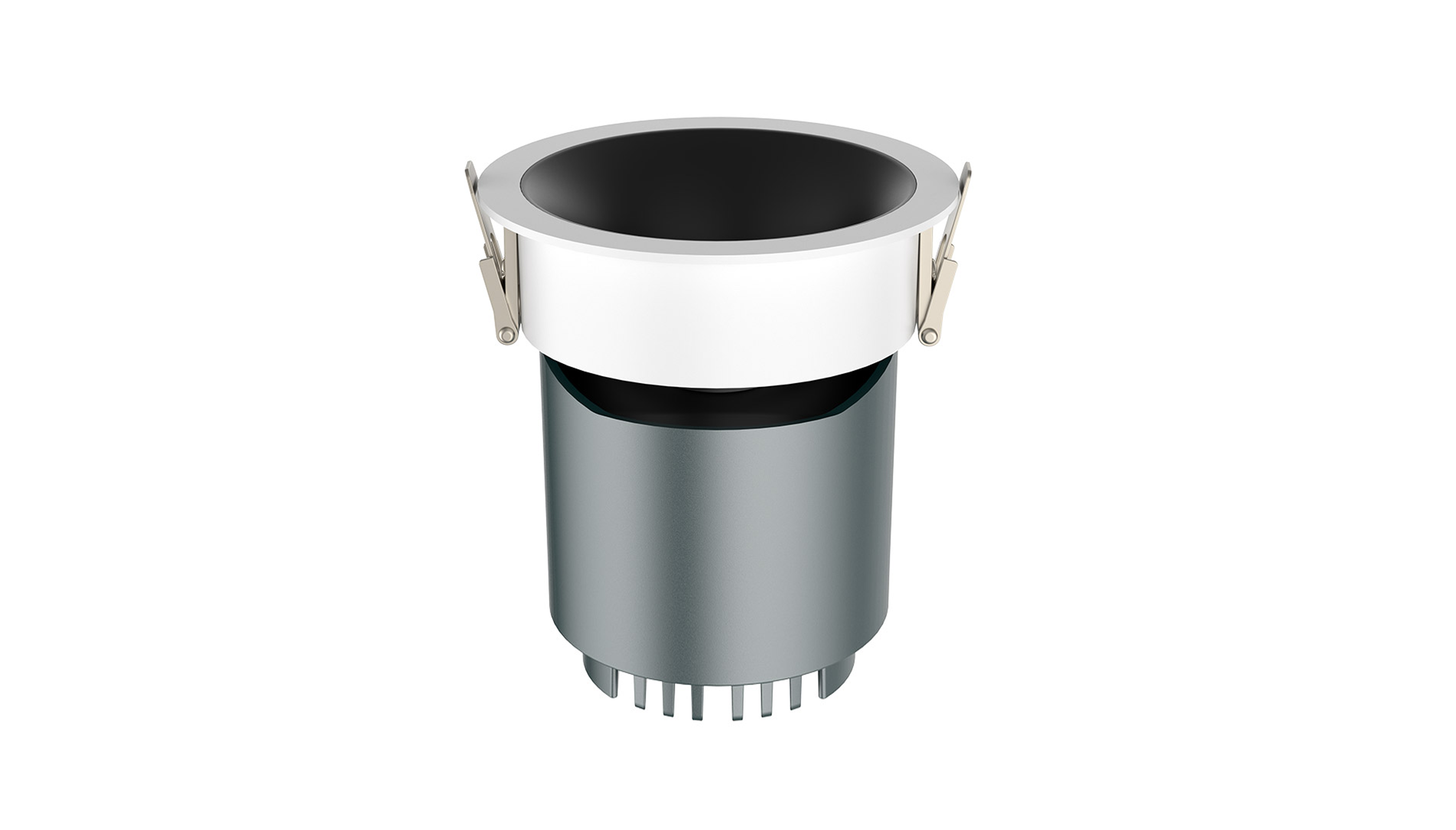

CS-Q0275-24S | 24W | Φ105*110 |
